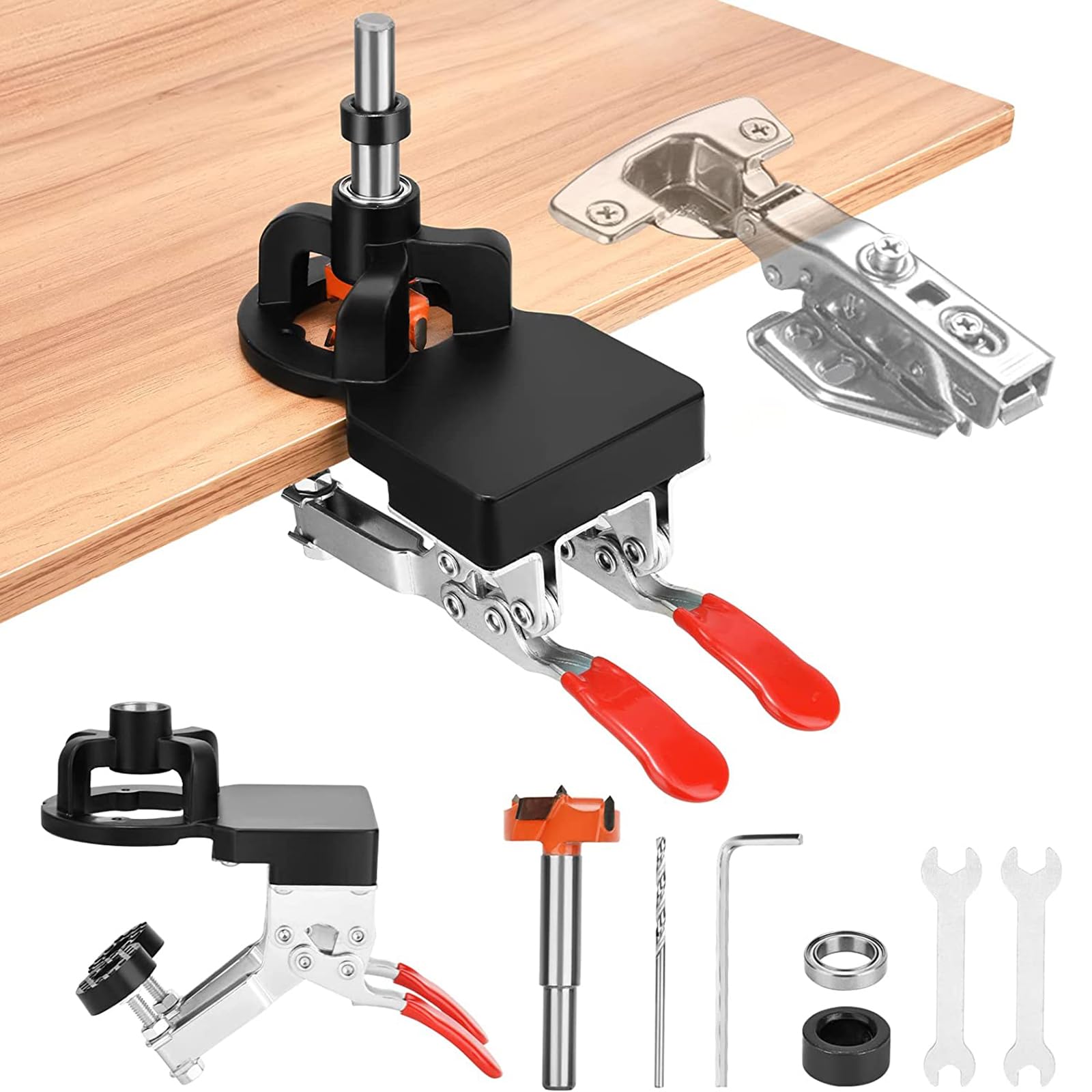

Woodworking 35mm Hinge Hole Opener Cabinet Door Hinge Punching Locator Hinge Drilling Installation Auxiliary Tool

【Premium Aluminum Alloy Material】The 35mm concealed hinge jig is made of high-quality aluminum alloy material, This is a set of guide tools for installing concealed hinges very accurate.

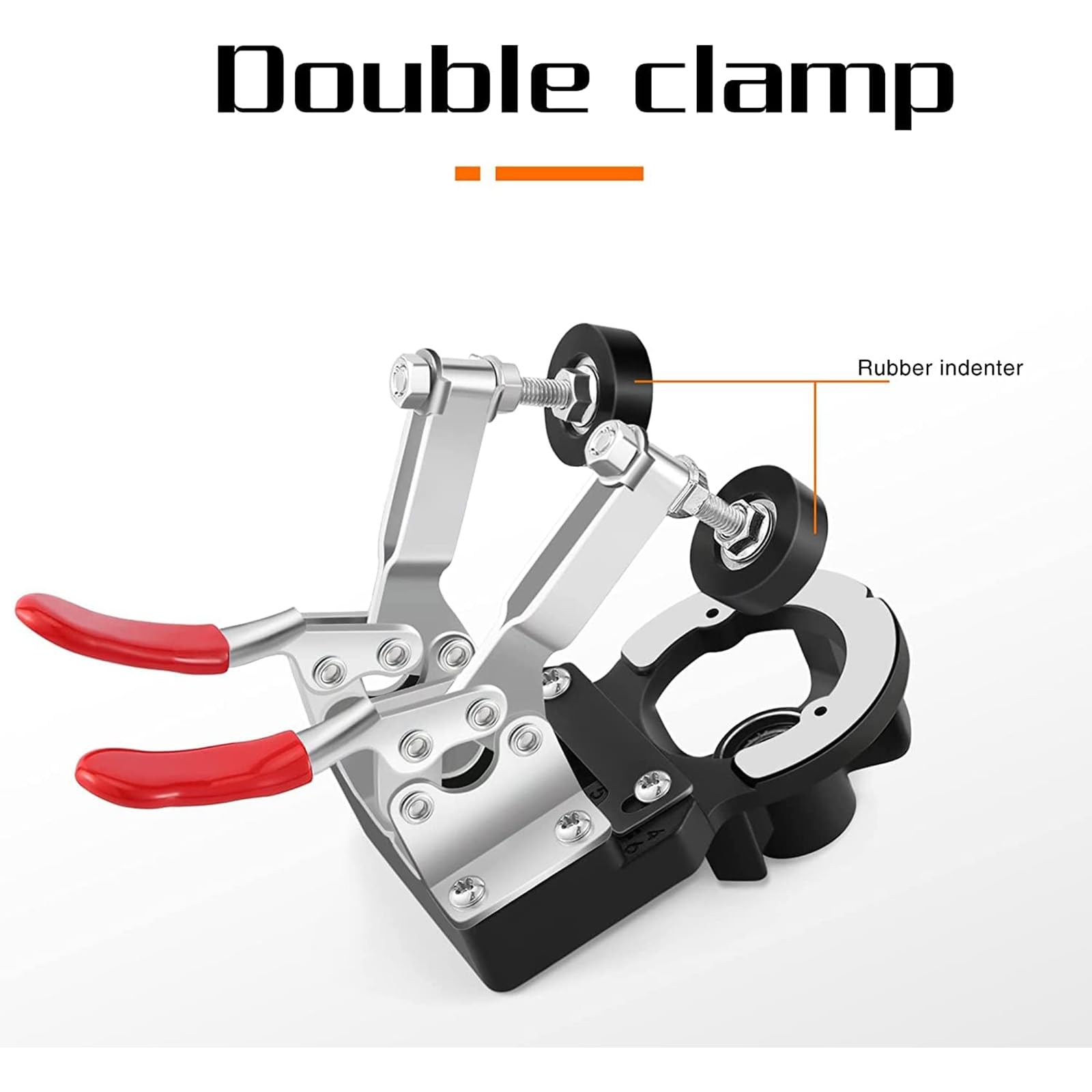

【Adjustable Double Cleat Design】Adjustable double clamping plate for accurate positioning, clamping 15-25mm thickness of wood panels, convenient for fast multi-angle drilling, and installation of cabinet door hinges.

【Focus On Practicality】Suitable for most 35mm cabinet hinge jig clamps, with an adjustable opening depth of 10-15mm and adjustable drilling edge distance of 3-7mm.

【Upgrade Three Bearing Drill Sleeve】Upper, middle, and lower 3 bearing drill sleeve, the total height of drill sleeve 2cm, the small swinging amplitude of drill bit for accurate hole opening.

【Perfect Choice】Easy to use with any drill, you don't have to be a well-equipped woodworker to install these hinges. Perfect for any handyman who needs hinges made.

Features:

• Drill locator guide with quick gripper for quick and tight clamping.
• The hinge light fixture is made of aluminum alloy body, not rusty, light and strong.
• Chip removal fixture, chip removal is larger, faster and smoother, drilling is more labor-saving, and work efficiency is improved.

Specifications:

• Material: aluminum alloy + stainless steel

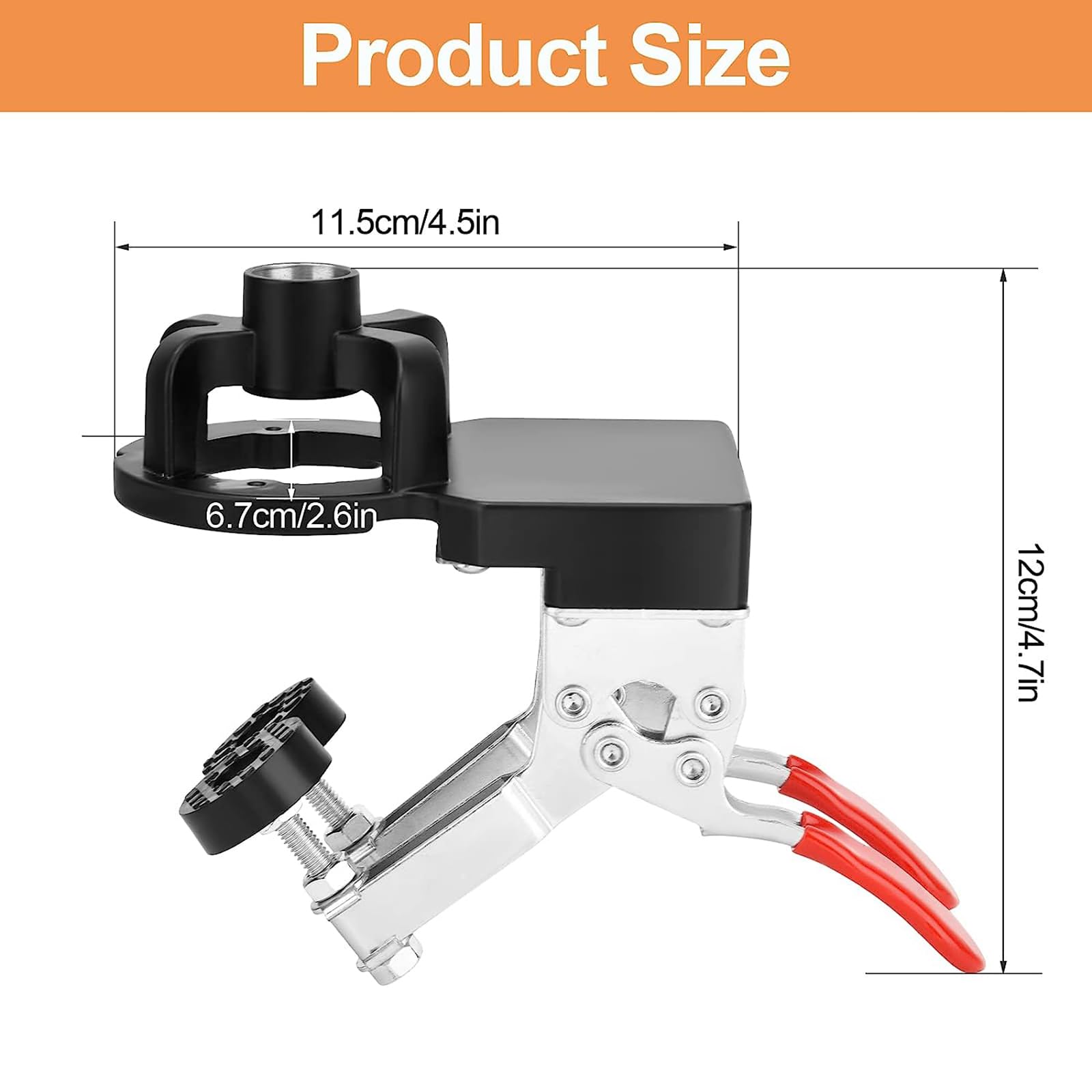

• Bottom size: 12 x 5.3cm / 4.72 x 2.09in

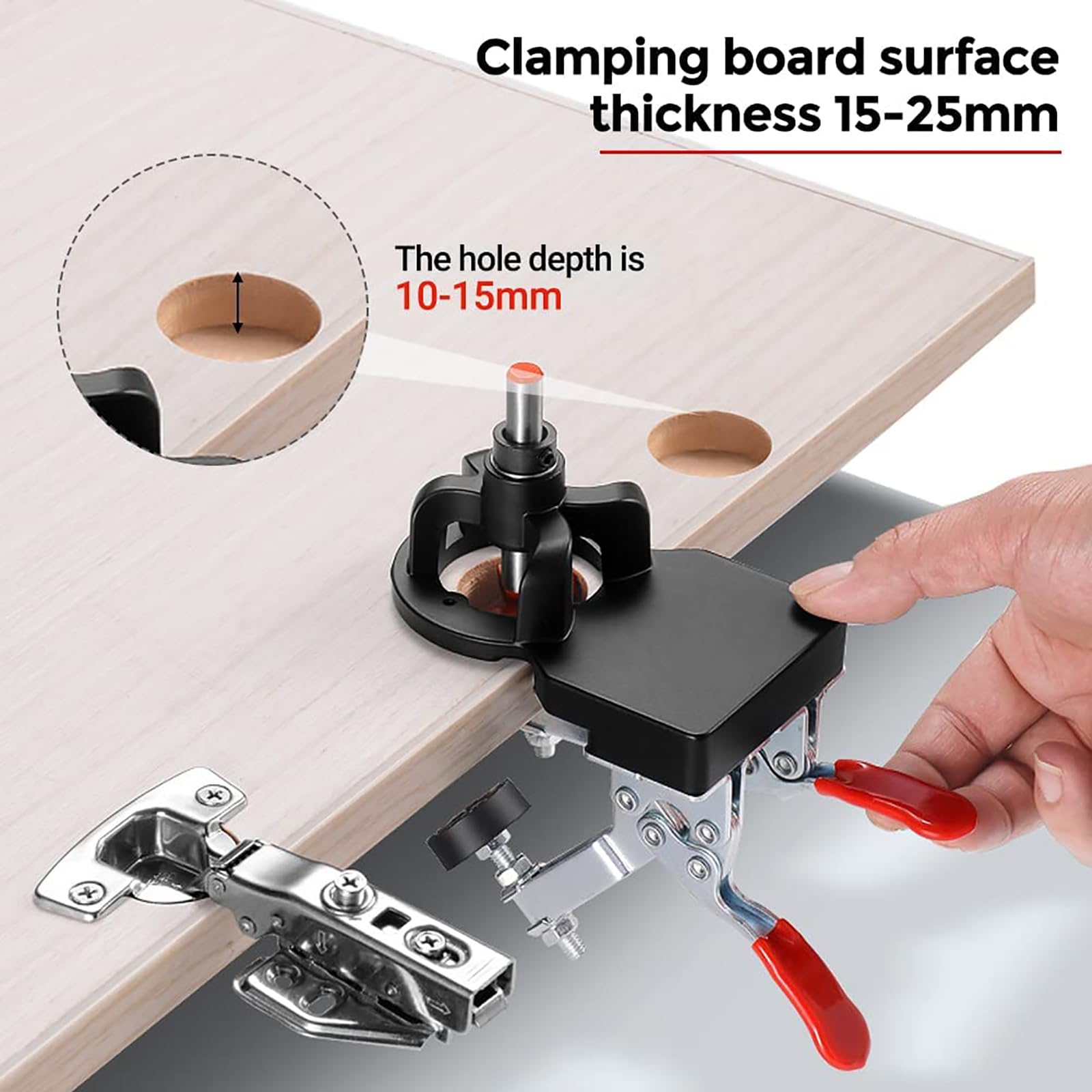

• Clamping board thickness: 15-25mm/0.59-0.98in
• Hole specification: 35mm / 1.38in

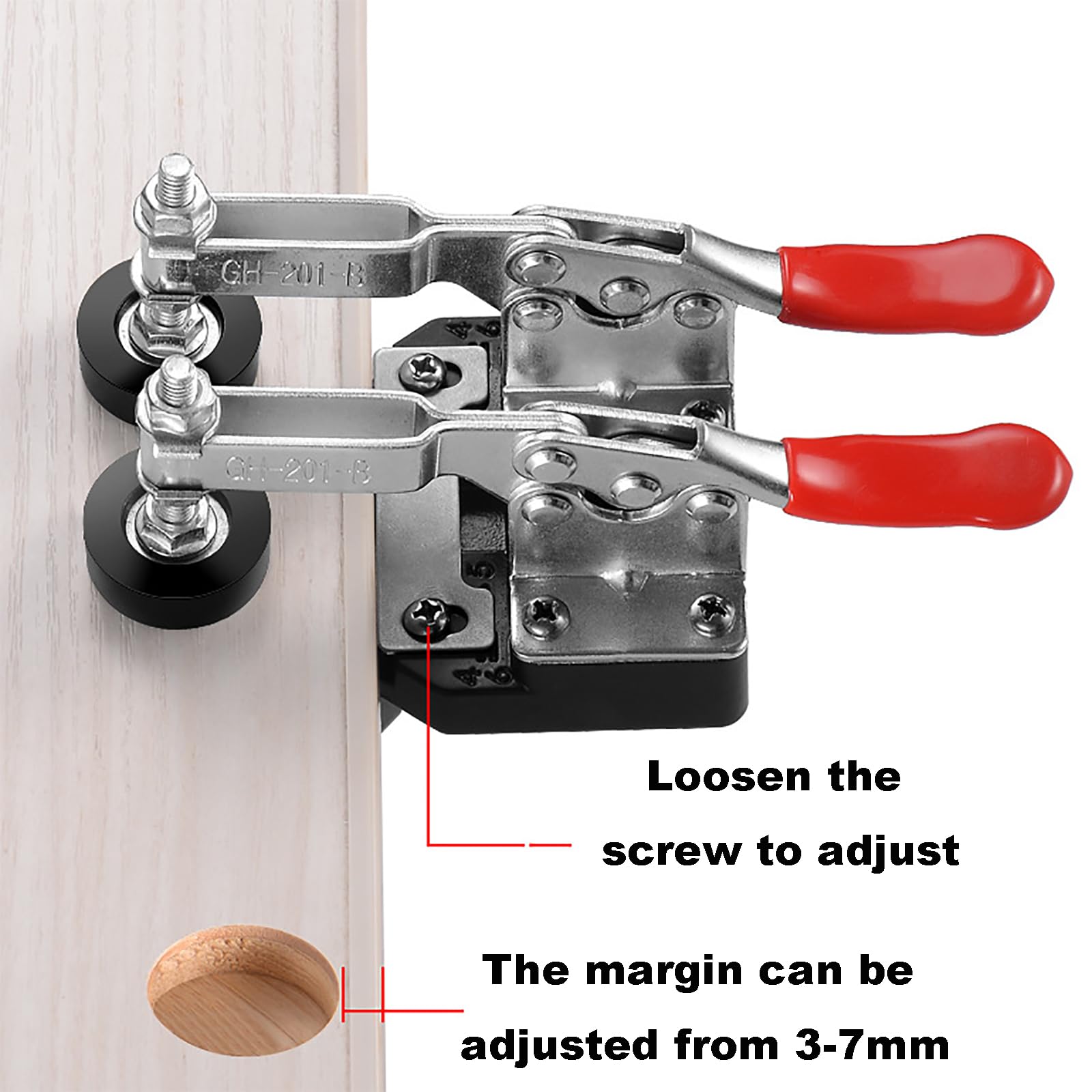

• Margin adjustment range: 3-7mm/0.12x0.28in

How to Install:
1. Install a 35mm hole opener;
2. Adjust the drilling depth to 10 to 15 mm and then lock the boundary ring;
3. Adjust the fixed size of the black pressure block of the quick clamp (note: the adjustable fixed plate size of the tool is 15~25mm);
4. Move the hole punch to the marking and drilling position of the board and lock the quick clamp;
5. Tighten the handle of the drill, press the hole at a constant speed to a depth of 10 to 15 mm;

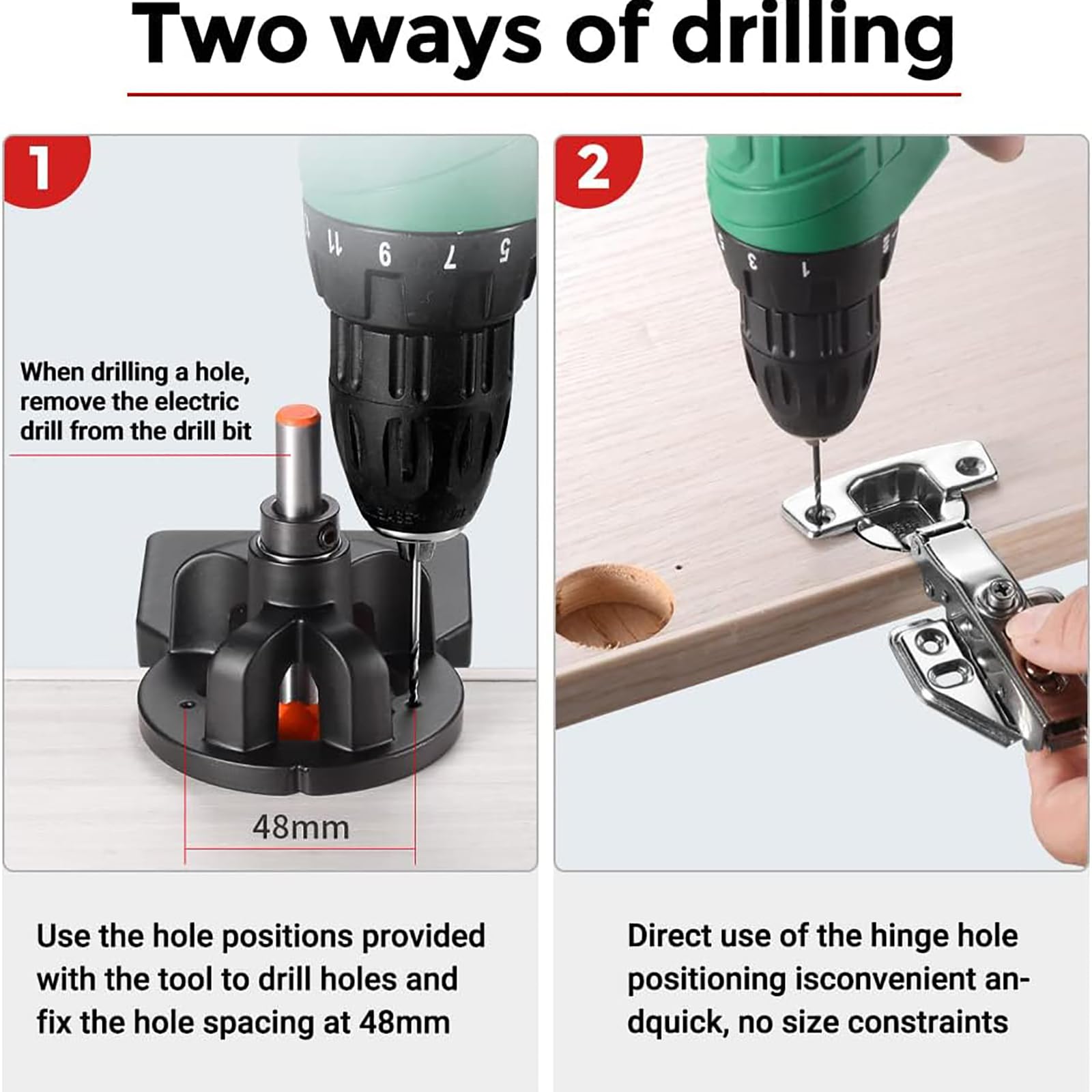

6. Drill a 2mm screw hole left and right and then install the 35mm hinge.

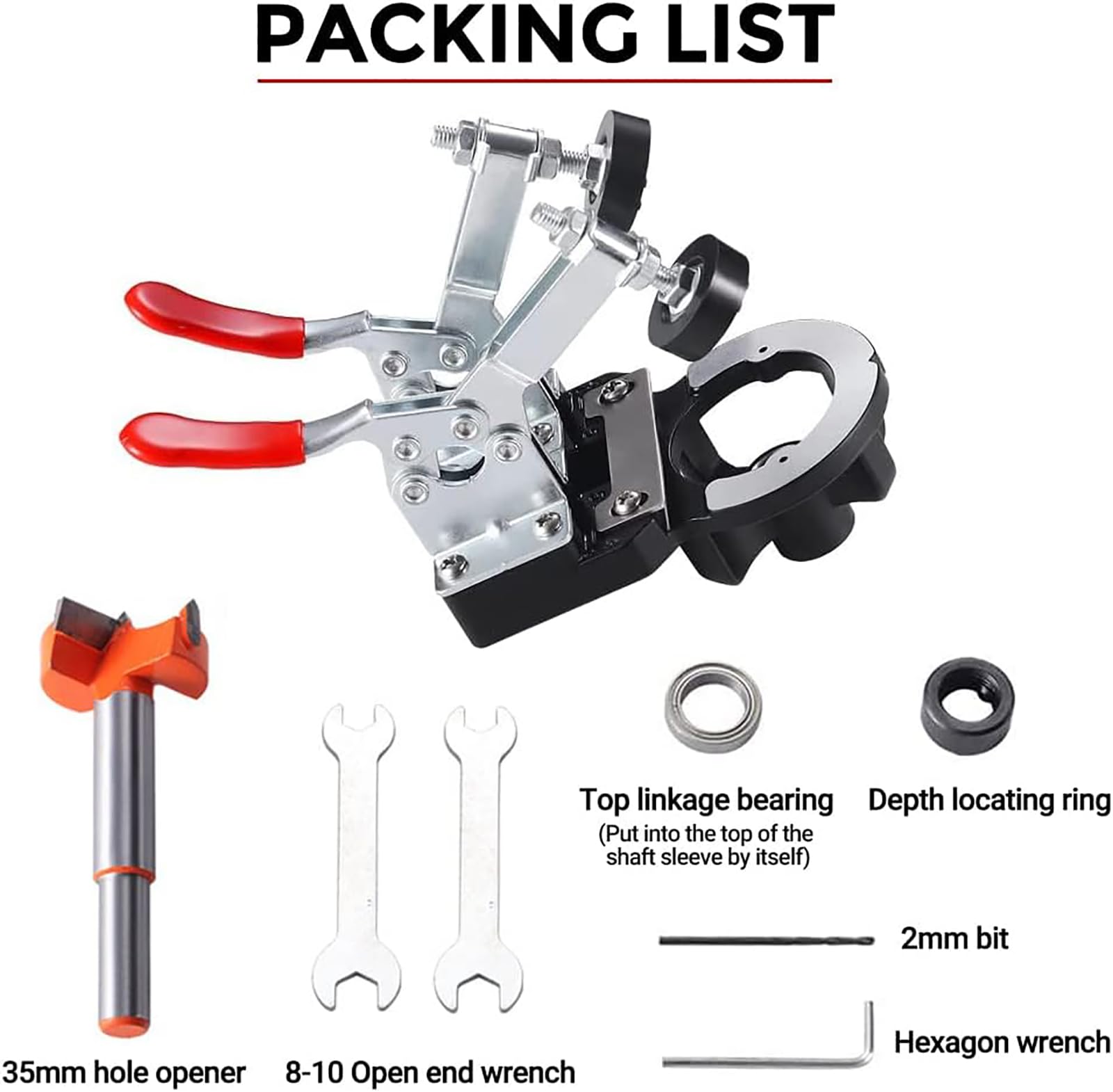

Package Includes:

1x Hinge Drilling Template
